inView 360° HD Quick-Install System


Price:
Sale price$950.00
 More payment options

  • Our fastest-installing 360° system, with the smallest footprint
  • 4 cameras provide seamlessly-stitched full perimeter Bird's-Eye View
  • 5-minute auto-calibration dramatically cuts down setup time
  • Integrates with proximity sensors

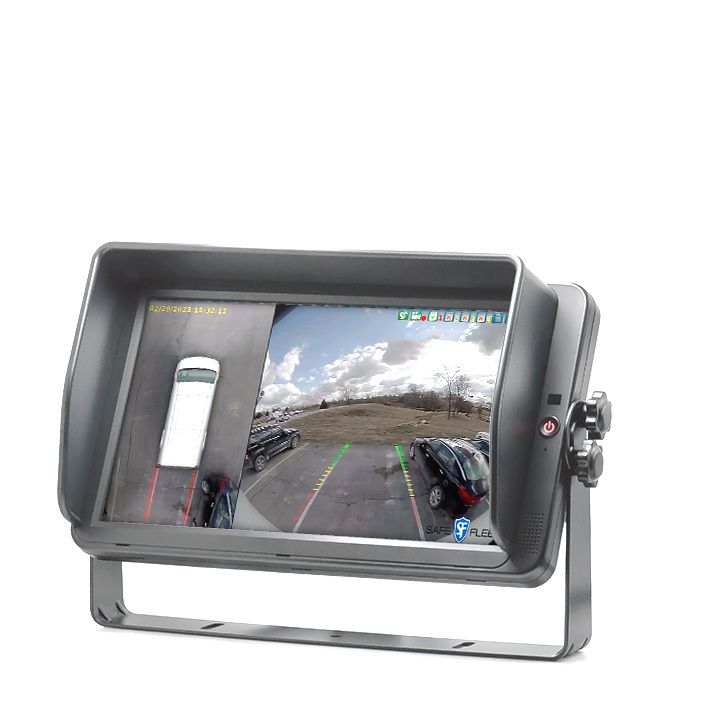

  • 720P video output via 7" or 10" HD monitor
  • Automatic trigger switch (reverse/left/right)
  • Customizable on-screen overlays

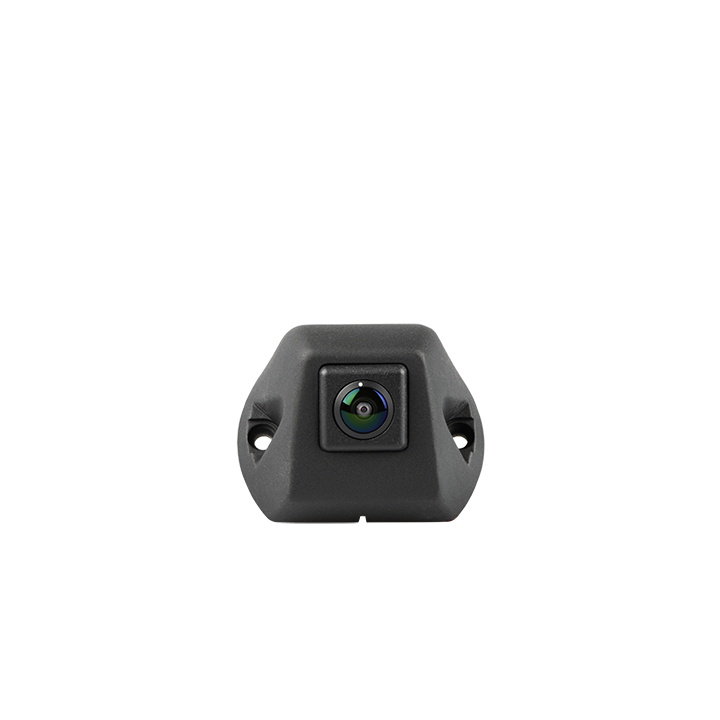

  • 4 x 190° HD wide-angle fish-eye cameras (<170° horizontal viewing angles)
  • ARM Cotex-A53 4.5GHz Quad-core processor, H.264 Video Compression
  • 720P/30 fps or 720P/25 fps
  • HD output
  • GPS is optional
  • Adjustable angle of the four overlapping areas
  • Reversing track function added
  • Integrate our 6 sensor system (02-360-SENS) for audible and visual proximity alerts to assist in backing up, parking, and clearing tight/short spaces (Call for integrated sensor packages and pricing)

With less mounting, wiring, and cable-running during the installation, the newest addition to our InView lineup has the fastest installation time and smallest footprint of all our 360° systems!

The RVS-360-MO's seamless auto-calibration is a 5-minute procedure that reduces setup time.

This system delivers crystal clear HD 720P/30 fps or 720P/25 fps video resolutions.

Four (4) 190° FHD 1080P wide-angle fisheye cameras (<170° horizontal viewing angles) combine with a powerful ARM Cortex-A53 processor to provide a highly accurate and seamless composite bird's eye image, with adjustable angles of the 4 overlapping areas.

Customize the on-screen overlays for outrigger vehicles, small box trucks, utility trucks, vans, or small buses.

Trigger wires auto-switch images to corresponding directions (left, right, and reverse), along with a new reversing track function.

RVS-360-MO comes with a 34-button remote control and can integrate sensors or GPS.

Camera:(with bracket) 2.0" x 1.7" x 1.6"
Monitors:10.5"x6.2"(10" monitor), 7.5" x 4.375" (7" monitor)

  • 1 Year Warranty
  • Same Day Shipping
  • Buy & Try 30 Day Guarantee
  • Lifetime Tech Support
  • Satisfaction is 100% Guaranteed
  • Private and 100% Secure
  • TS 16946:2009 & ISO 9001:2008 Certified
  • 26 Point Quality Assurance
