Backup Camera System with Quad View Monitor

• Backup Camera System with Quad View Monitor
• 7" LED Digital Color Display with Removable Sunshade
• Single, Double, Triple and Quad Viewing Options
• Waterproof Cameras with Infra-Red Night Vision
• Provides Complete View of Blind Spots around Vehicle

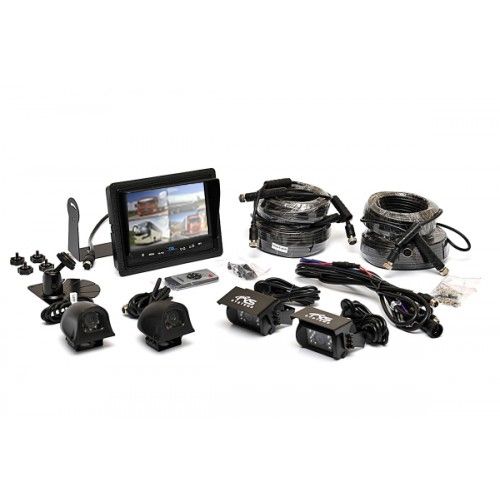

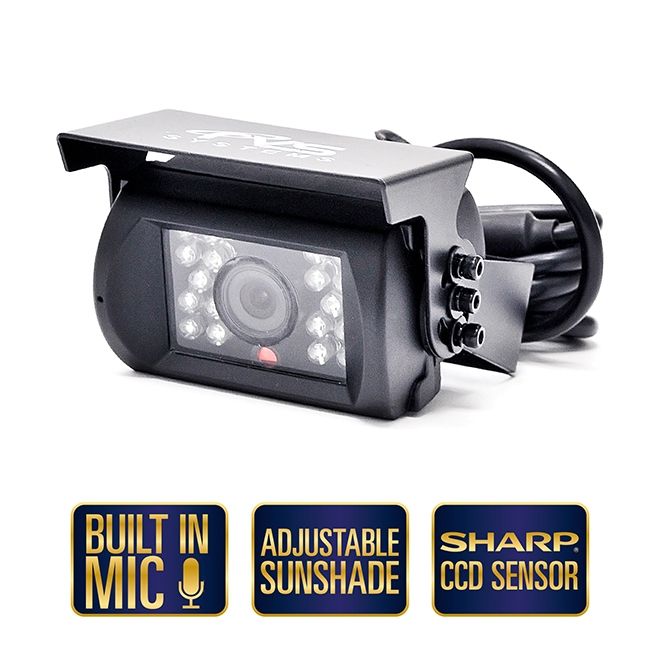

This system is complete with a crystal clear 7" DIGITAL TFT LCD color monitor with single, double, triple and quad viewing modes. The heavy duty backup camera(s) are equipped with 18 infra-red lights, a 130 degrees viewing angle and an IP69K waterproof rating. The two side cameras are bullet shaped and designed to mount to the side of your vehicle. Each come with 9 infra-red lights, a 120 degrees viewing angle and an IP68 waterproof rating. The system comes with all cabling, mounts and parts necessary for installation.

Note: The monitor options on this system are for 12V vehicles. For 24V vehicles, please visit the individual monitor page to purchase the proper monitor. Click here for the 7" Quad View and click here for the 9" Quad View. Select 24V under the item options.

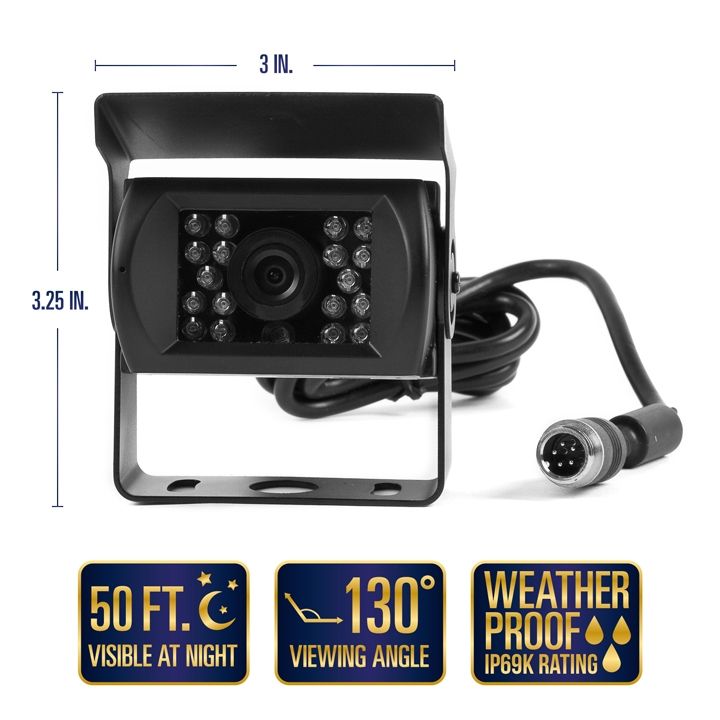

Backup Camera:(with bracket) 3.25" (H) x 3" (L) x 1.5" (D)

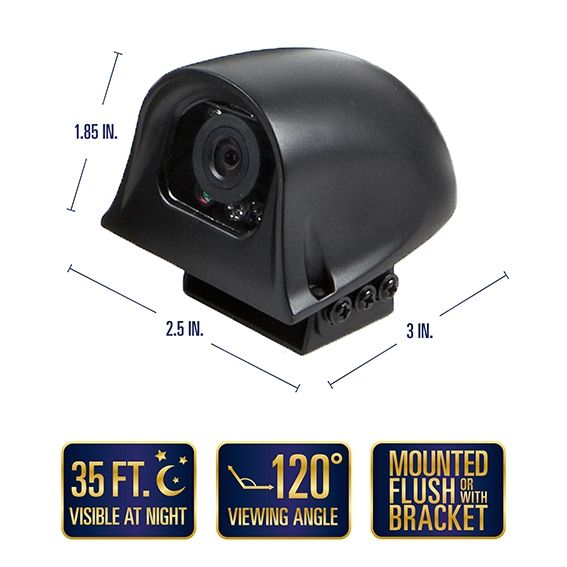

Side Camera:1.85"(H) 2.5" (L) 3" (D)

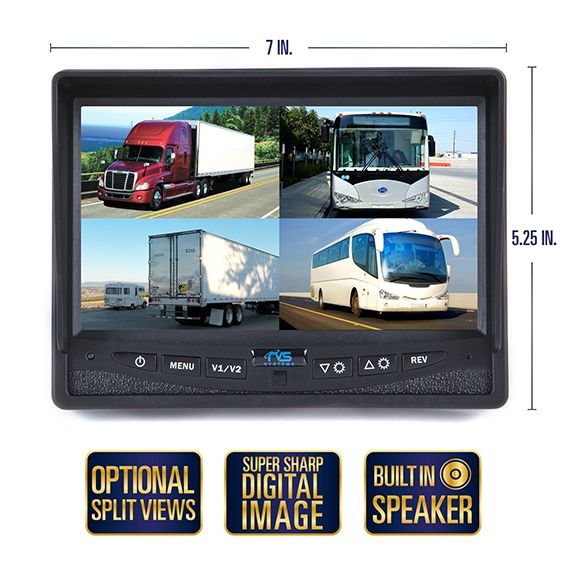

Monitor:5.25" (H) x 7" (L) x 1" (D)
