Backup Camera System For Tractor-Trailer with Integrated Sensors | 4 Camera Setup

• Quad View - Multiple Viewing Options
• Backup Camera System with Four Cameras
• Four Intelligent Sensors Mount to Rear of Vehicle
• Commercial Grade Trailer Tow Quick Connect Kit
• Completely Waterproof Cameras With Excellent Night Vision

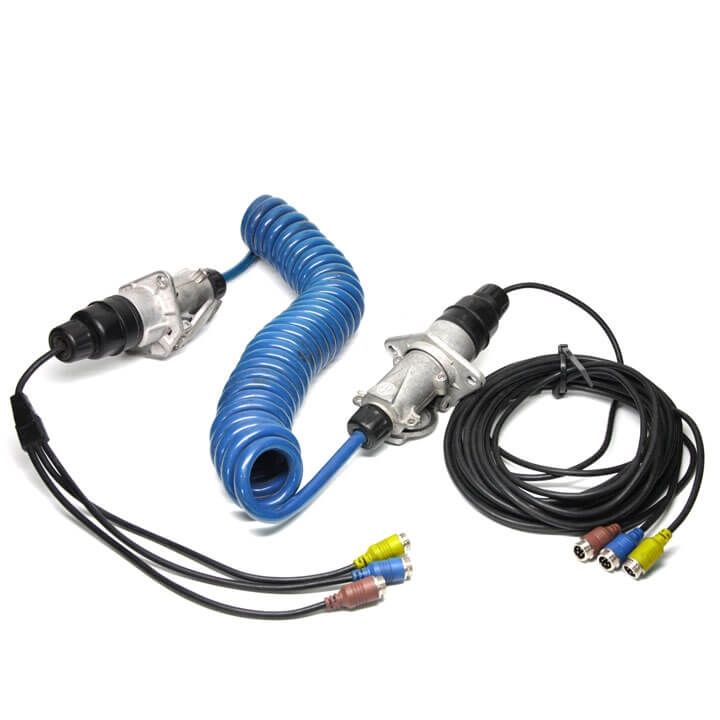

The system features a 7” quad view monitor, two side cameras with a 120° viewing angle, a backup camera with 18 infra-red illuminators, and a flushmount forward facing camera. All of the cameras are completely waterproof. For complete protection, we’ve added four waterproof backup sensors with an enhanced rugged mount. These sensors alert you audibly and also display the distance you have behind your vehicle on the system monitor. The RVS-2782 also features our commercial grade quick connect kit, allowing you to wire the truck and trailer separately and connect with just one pigtail cable.

Please Note: This is a 4-pin system.

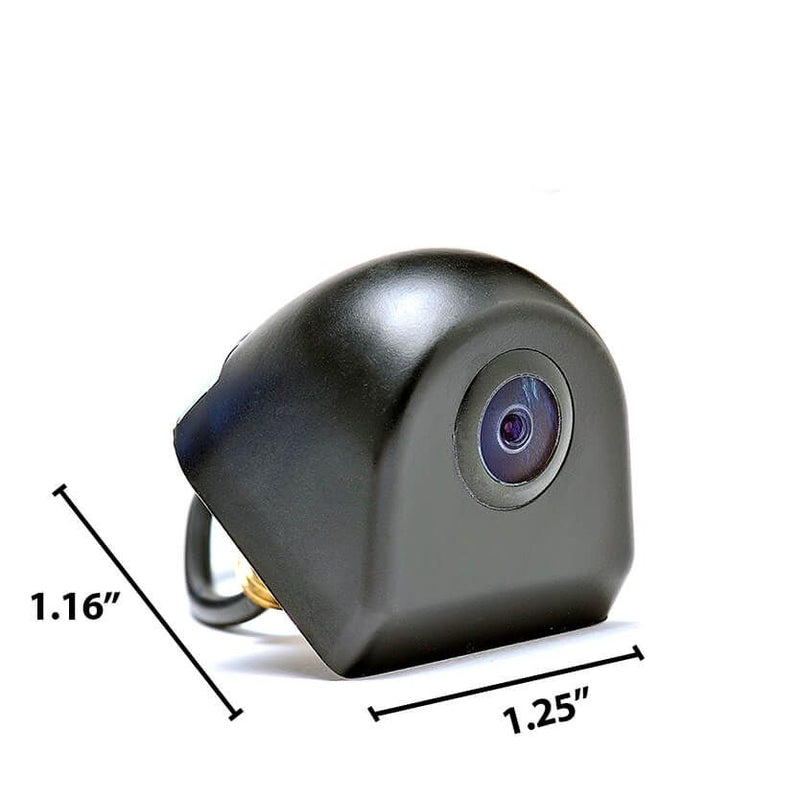

Forward Facing Camera:1.25" (H) x 1.25" (L) x 1.25 "(D)

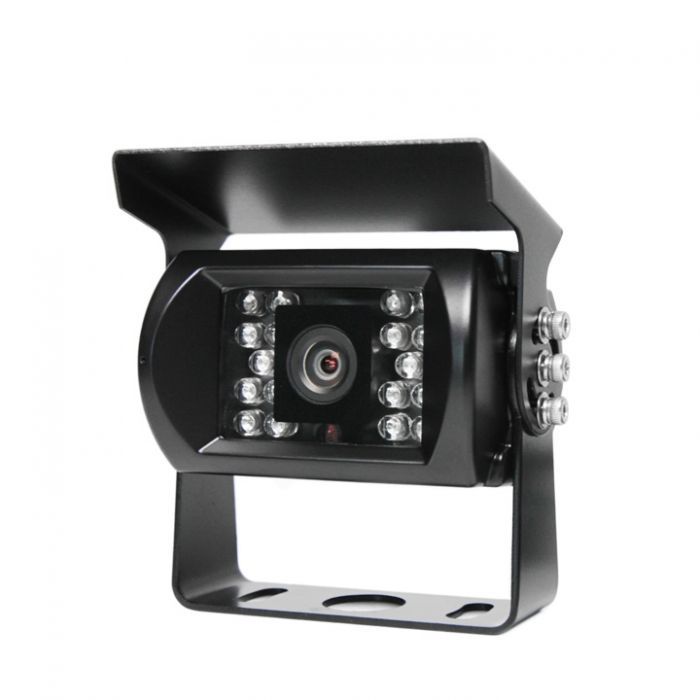

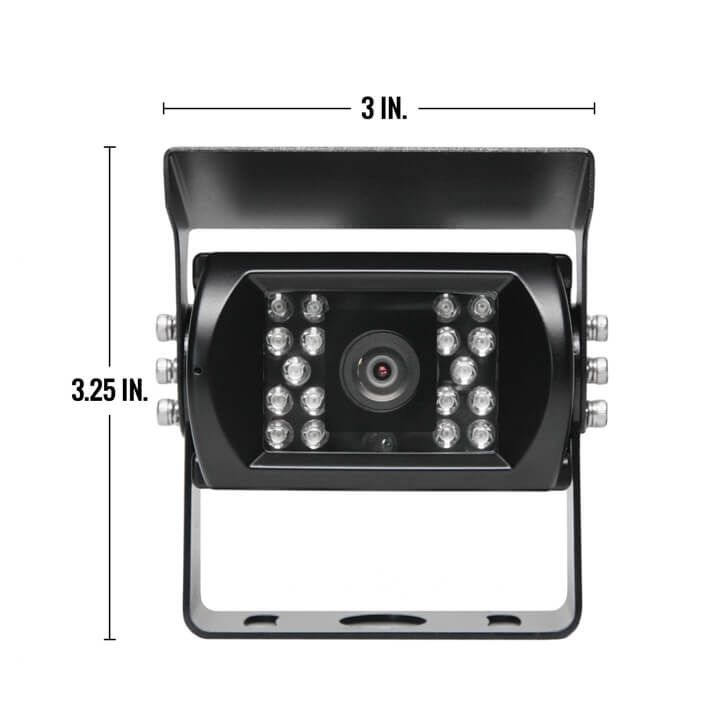

Backup Camera:(with bracket) 3.25" (H) x 3" (L) x 1" (D)

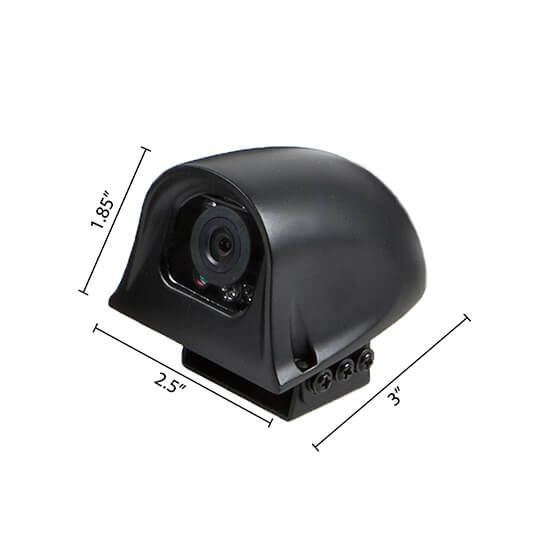

Side Camera:1.85" (H) x 2.5" (L) x 3" (D)

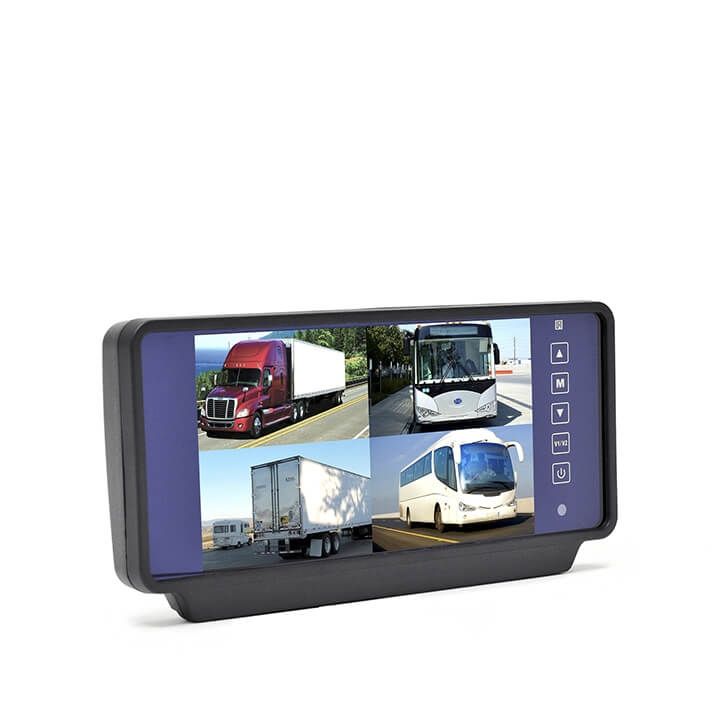

Monitor:5.25" (H) x 7" (L) x 1" (D)
Waterproof Control Module:1.4" (H) x 4.88" (L) x 3.5" (D)

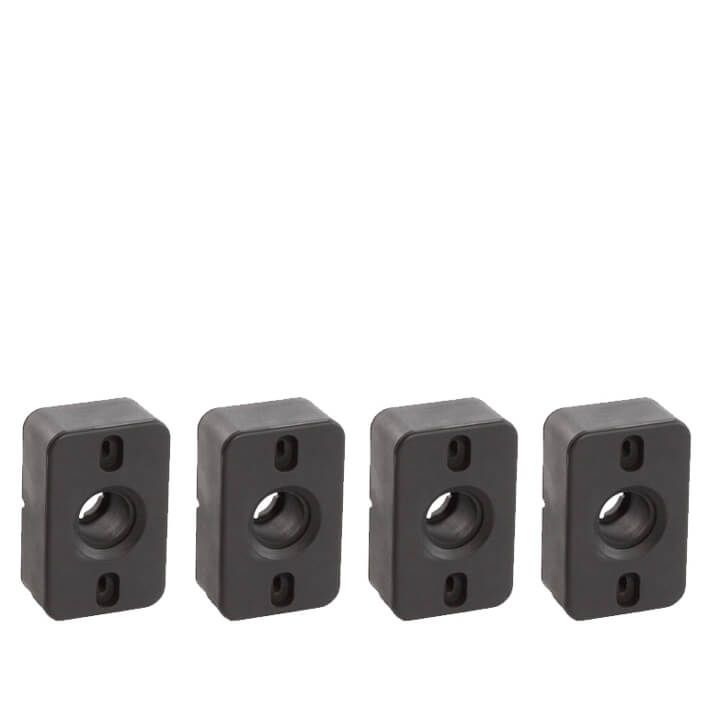

Sensors:1" (H) x 0.93" (L) x 0.81" (D)
